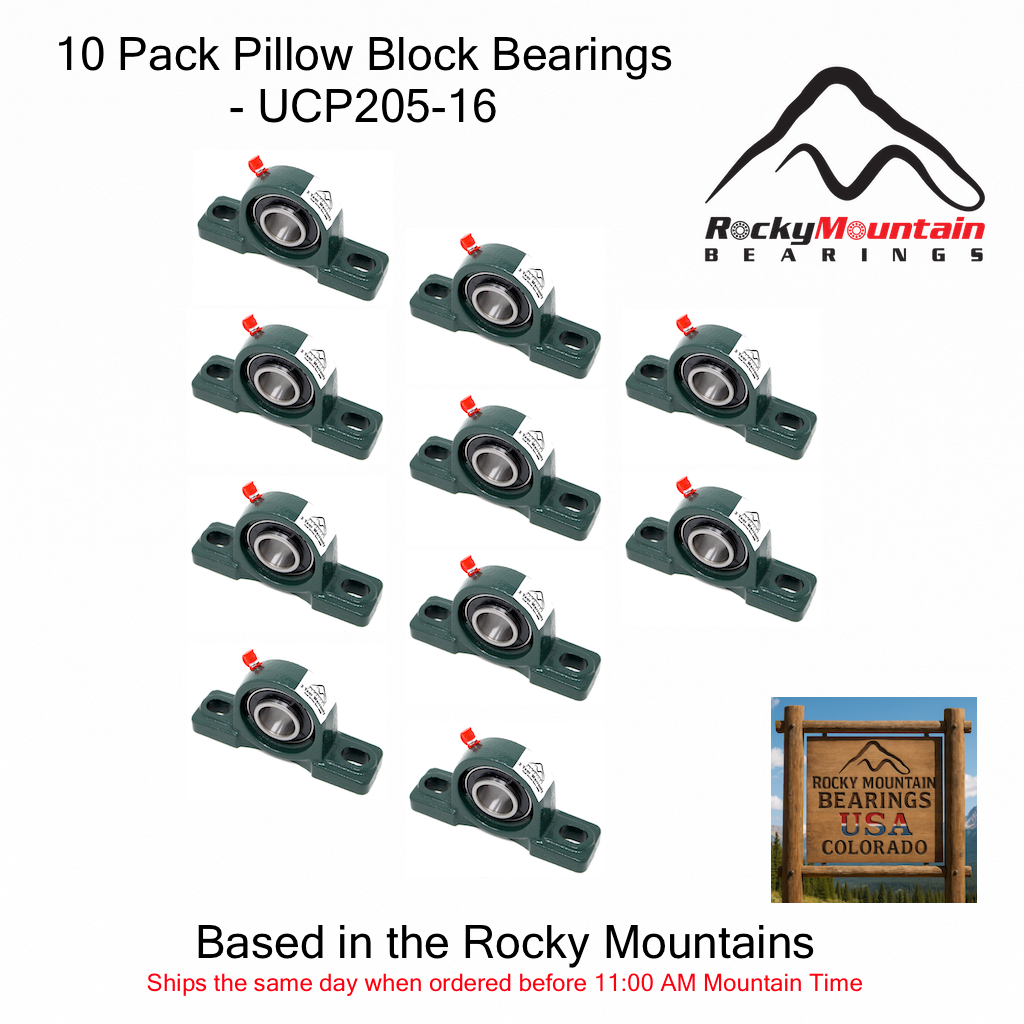

(10) UCP205-16 Solid Base Pillow Block Bearing 1" Bore Self Aligning 2 Bolt
🏔 Rocky Mountain Bearings (10 Pack) UCP205-16 Pillow Block Bearing - 5 Year Warranty

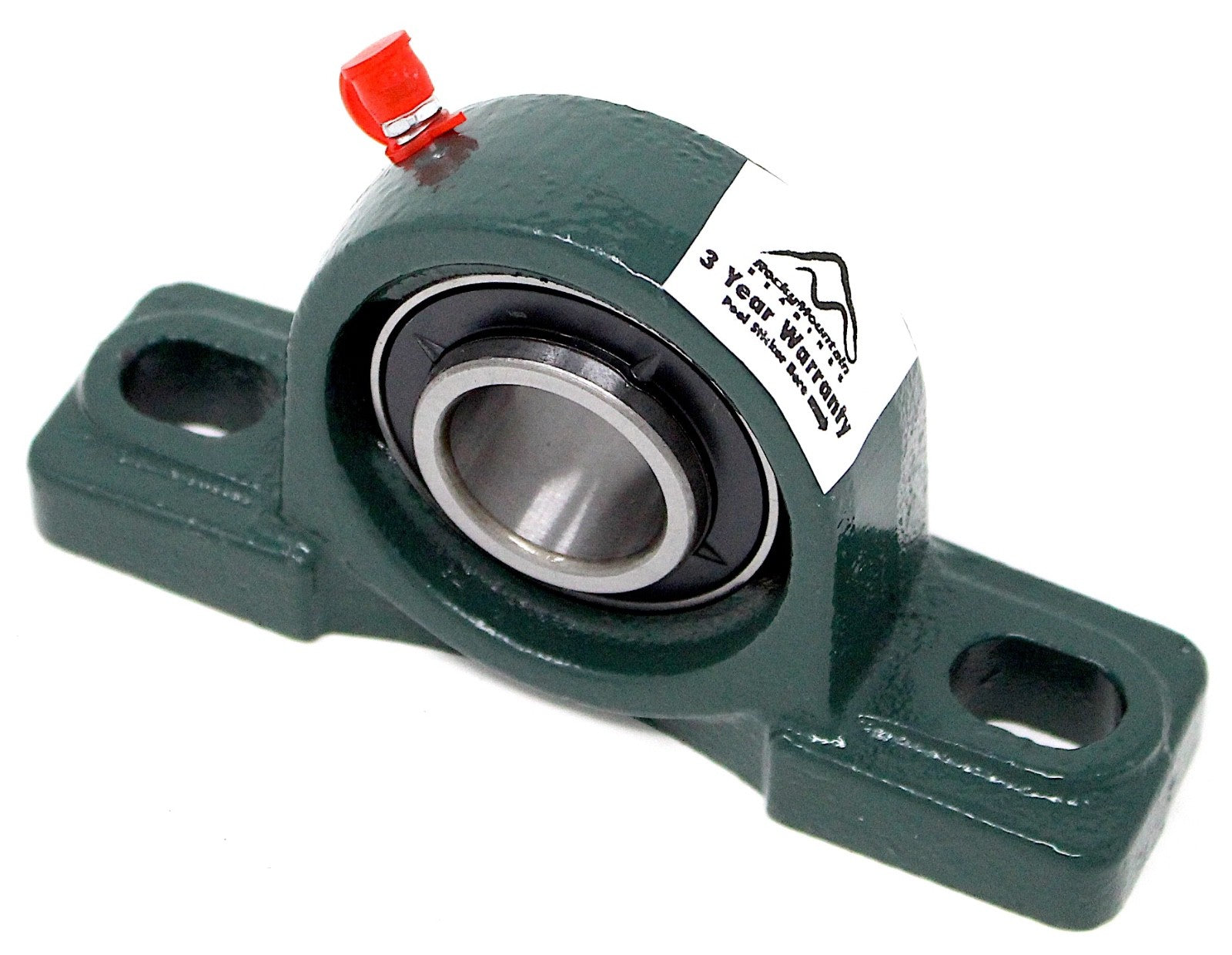

Product Overview
The UCP205-16 Pillow Block Bearing combines a heavy-duty cast iron housing with a chrome steel set-screw insert for durable, precise performance. This standard-duty unit features a wide inner ring, standard base-to-center height, and a 45° grease fitting for easy re-lubrication. Each unit arrives pre-lubricated and ready to install. Dual set screws on the extended inner ring securely lock to the shaft, providing vibration resistance and consistent performance. You will receive ten (10) pillow block bearings per pack.

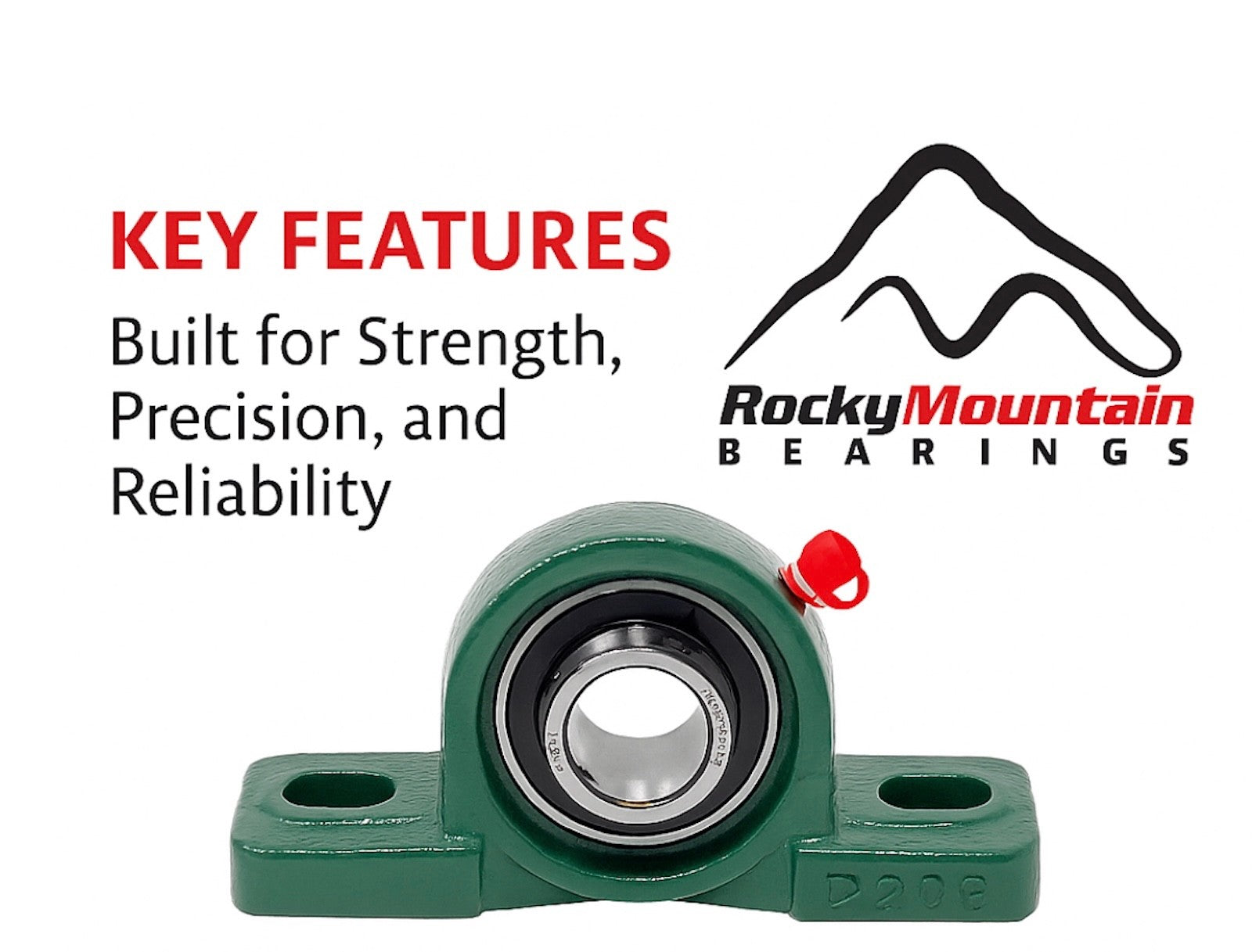

Key Features
- Heavy-duty cast iron housing resists vibration
- Chrome steel insert for smooth, long-life operation
- Dual set screws for a secure shaft connection
- 45° grease fitting for quick and easy maintenance
- Pre-lubricated & ready to install
- Standard base-to-center height design
- Five-Year Warranty — built to last, guaranteed
Applications / Industries
- Construction & Agricultural Machinery
- Manufacturing & Production Equipment
- Conveyor & Material Handling Systems
- Pumps, Fans & HVAC Systems
- Feed Mills & Processing Equipment
- Sporting Goods & Consumer Products
Technical Specifications
- Inner Diameter: 1"
- Overall Height: 2-25/32"
- Overall Length: 5-1/2"
- Bolt Hole to Bolt Hole: 4-1/8"
- Base to Center: 1-7/16"
- Housing Material: Cast Iron
- Insert Material: Chrome Steel (SAE-52100)
- Lubrication: Proprietary Grease
- Static Load: 1,810 lbf
- Dynamic Load: 3,154 lbf
- Speed Limit: 6,250 RPM
Interchange Part Numbers
SY 1TF, UCP205-16, VPS-216, 123806, P2B-SC-100, RASC-1, YAS-1, P3-U216N, P3-Y216N, USP205-16S, UCP205-100D1, FHSP205-16G, NP-1, 151-100, NP-16, NAP205-16, ENLP205-16SJ, FHP205-16G, HCP205-16, BP008, ALP205-16, BLP205-16, P3S216E
Why Choose Rocky Mountain Bearings
At Rocky Mountain Bearings, we design every product for quality, precision, and reliability. Our bearings are manufactured to the highest standards for accuracy, consistency, and durability. Every purchase is backed by our 5-Year Warranty, ensuring long-lasting performance and peace of mind.
eBay SEO Highlights
- UCP205-16 Pillow Block Bearing
- UC205-16 Chrome Steel Insert, 1" Bore
- Cast Iron Housing, Pre-Lubricated, 45° Grease Fitting
- Replacement: UCP205-16, SY 1TF, VPS-216
- Industrial, HVAC, Agricultural, Conveyor Applications
- 10-Pack Pillow Block Bearings
- 5-Year Warranty — Rocky Mountain Bearings USA
